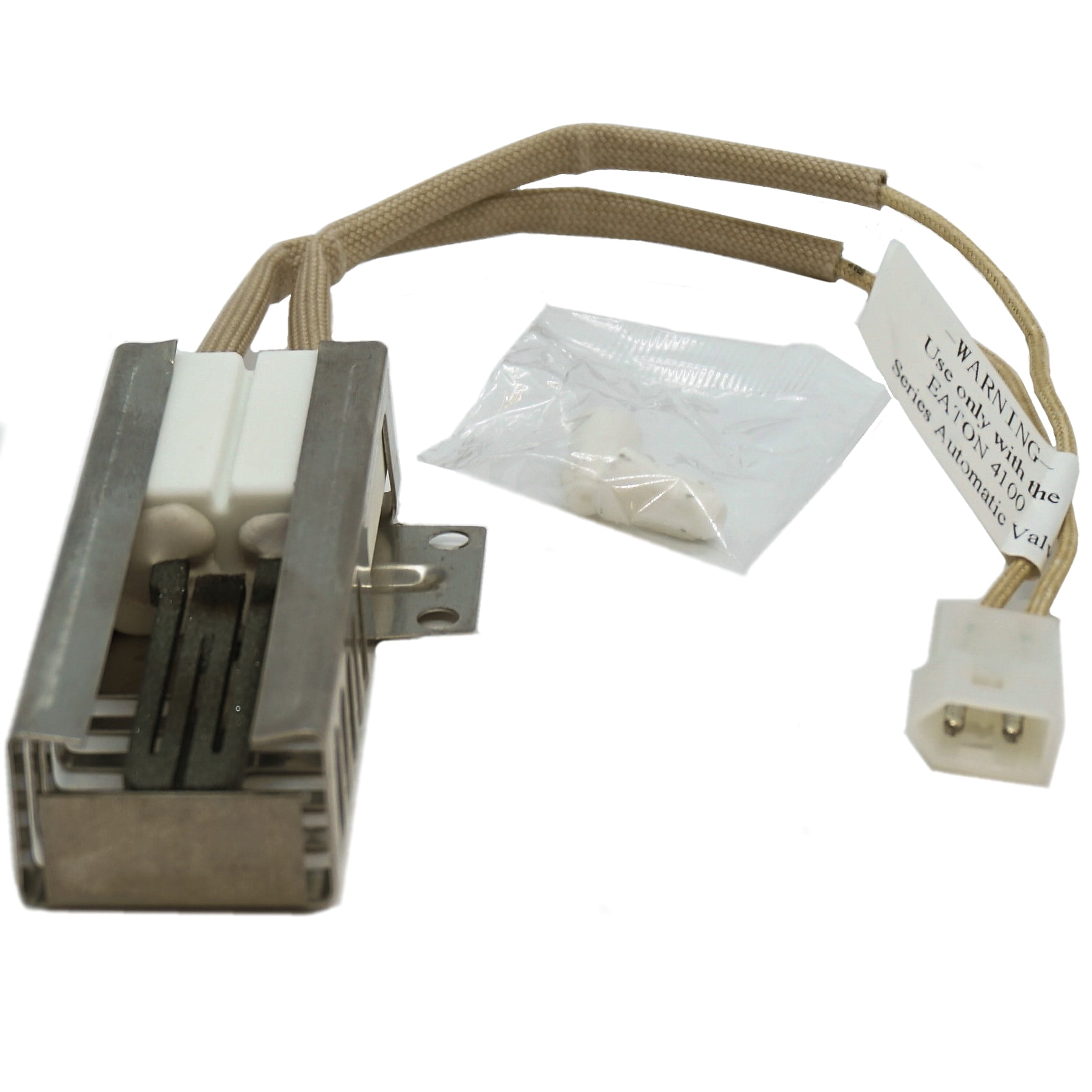

Supco Oven Range Igniter for Whirlpool, AP6037202, PS11770066, W10918546

Brand new Supco (SGR8546) Oven Range Igniter replaces Whirlpool, Maytag part number, W10918546. 10.25" leads. Includes bracket with shield. CSA/US Approved.

• Oven Range Igniter | Supco SGR8546 | Replaces Whirlpool® / Maytag® W10918546 Brand new Supco (SGR8546) oven range igniter replacing Whirlpool and Maytag part number W10918546. This hot surface igniter draws the proper current to open the gas safety valve and ignite the burner quickly and reliably. Includes bracket with shield for a complete installation. A weak or failing igniter is the most common cause of an oven that won’t heat, takes too long to ignite, or glows without lighting the burner. Replacing the igniter restores fast, consistent ignition and proper bake performance. ⚙️ Specifications
• Amp Rating: 3.4 – 3.6 Amp
• Block Length: 1.5"
• Cage Length: 3.75"
• Lead Length: 10" leads with male pins
• Bracket: Included with shield
• Certification: CSA/US Approved
• Condition: Brand New – Unused ⚠️ Symptoms This Part Fixes
• Gas igniter glows but will not light
• Oven won’t start
• Little to no heat when baking
• Slow or inconsistent ignition Replaces Part Numbers AP6037202, WPW10140611, W10140611, 98005652, PS11770066, W10918546VP, W10918546 Compatible Oven Models SF315PEKW0 SF310PEKW0 FGP305KW3 SF315PEKQ0 SF315PEPW1 SF315PEMW1 SF315PEPB1 FGP305KW0 SF114PXSQ1 SF315PEPW2 SF315PEKB1 SF3020EKQ3 SF310PEKW1 SF315PEPQ2 SF315PEPW3 SF114PXSB1 SF315PEKV0 SF310PEKQ0 SF315PEMQ1 SF315PEPW0 SF111PXSQ1 SF114PXSW0 SF303PEKW0 SF315PEKQ1 SF315PEPQ4 SF315PEMB1 FGP305KW5 FGP325KW0 SF310PEKQ1 SF315PEPB2 SF315PEPQ1 FGP305KW4 SF114PXSW1 SF3020EKW0 TGP305TQ0 FGP305KW2 SF114PXSQ0 FGP305KN0 SF110AXSQ1 FGP305KW6 FGP337KW0 SF114PXSB0 SF114PXSQ2 SF114PXST1 SF216LXSQ0 SF303PEKQ0 SF303PEKW2 SF310PEKN0 SF315PEPQ3 SF315PEPT1 TGP305RW2 FGP305KW1 SF110AXSQ0 SF111PXSQ0 SF3020EKQ2 FGP305KV3 SF114PXSW2 SF3020EKQ4 SF3020EKW1 SF315PEKT1 TGP325LQ0 FGP337KN0 SF114PXSB2 SF114PXST0 SF3020EKQ1 SF303PEKQ1 SF303PEKQ2 SF303PEPQ0 SF303PEPQ2 SF303PEPQ3 SF310PEKT1 SF315PEKV1 SF315PEKW1 SF315PEMQ0 SF315PEPT2 SF325LEKQ1 SF325LEKT0 SF325LEKT1 SF325LEKW0 TGP325LQ1 TGP325LW1 AGG222VDB0 AGG222VDB1 AGG222VDW0 AGG222VDW1 AGG222VDW2 AGR3311WDQ0 AGR3311WDW0 AGR3311WDW1 AGR3311WDW2 AGR3311WDW3 AGR4230BAB0 AGR4230BAB1 AGR4230BAW0 AGR4230BAW1 AGR4422VDB0 AGR4422VDD0 AGR4422VDS0 AGR4422VDW0 AGR4433XDB0 AGR4433XDB1 AGR4433XDB2 AGR4433XDS0 AGR4433XDS1 AGR4433XDS2 AGR4433XDW0 AGR4433XDW1 AGR4433XDW2 AGR5330BAB0 AGR5330BAB1 AGR5330BAS0 AGR5330BAS1 AGR5330BAW0 AGR5330BAW1 CGRP305TDW0 FGP305KN1 FGP305KN2 FGP305KV4 FGP305KW7 FGP314TQ0 FGP325KN0 FGP325KN1 FGP325KW1 FGP337KQ0 FGP337KW1 IGS350BW0 MGR5605WB0 MGR5605WW0 SF110AXSQ2 SF111PXSQ2 SF114PXST2 SF216LXSM0 SF216LXSM1 SF216LXSM2 SF216LXSQ1 SF216LXSQ2 SF216LXSQ3 SF3020EKN0 SF3020EKN1 SF3020EKQ0 SF3020EKT0 SF3020EKT1 SF3020EKT2 SF3020EKT3 SF3020EKT4 SF303PEKT0 SF303PEKT1 SF303PEKW1 SF303PEPQ1 SF310PEKN1 SF310PEKT0 SF310PEKV0 SF315PEKB0 SF315PEKT0 SF315PEMB0 SF315PEMT0 SF315PEMT1 SF315PEMW0 SF315PEPB0 SF315PEPB3 SF315PEPQ0 SF315PEPT0 SF315PEPT3 SF325LEKQ0 SF325LEKW1 TGG222VDB0 TGG222VDQ0 TGP305RV0 TGP305RV1 TGP305RV2 TGP305RV3 TGP305RW0 TGP305RW1 TGP305RW3 TGP305TQ1 TGP305TQ2 TGP305TT0 TGP305TT1 TGP305TT2 TGP310LW0 TGP310LW1 TGP310LW2 TGP310LW3 TGP310LW4 TGP310TQ0 TGP310TQ1 TGP314TQ0 TGP314TT0 TGP325LW0 VSF303PEKQ2 VSF303PEKQ3 VSF303PEKQ4 VSF315PEMQ1 VSF315PEMQ2 VSF315PEMQ3 VSF315PEMT1 VSF315PEMT2 VSF315PEMW1 VSF315PEMW2 WFG110AVQ0 WFG111SVQ0 WFG111SVQ1 WFG114SVB0 WFG114SVQ0 WFG114SVT0 WFG114SVW0 WFG114SWB0 WFG114SWB1 WFG114SWQ0 WFG114SWQ1 WFG114SWT0 WFG114SWT1 WFG231LVB0 WFG231LVB1 WFG231LVQ0 WFG231LVQ1 WFG231LVS0 WFG231LVS1 WFG320M0BB0 WFG320M0BS0 WFG320M0BW0 WFG505M0BB0 WFG505M0BS0 WFG505M0BS1 WFG505M0BW0 YSF315PEKQ0 YSF315PEKQ1 YSF315PEKW0 YSF315PEMQ0 YSF315PEMQ1 YSF315PEPQ1 Restore fast, reliable oven ignition with this OEM‑compatible Supco SGR8546 igniter — durable, efficient, and ready for installation.
